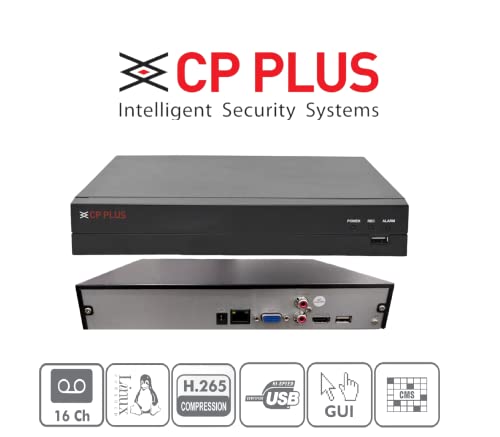

CP PLUS 16 Channel NVR [CP-UNR-216F1-V3] for IP Network CCTV Cameras with USEWELL HDMI, Black

Price: [price_with_discount]
(as of [price_update_date] – Details)


Processor : Industrial-grade embedded processor

Operating System : Embedded LINUX

IP Camera Input : 16 channel

Two-way Talk : 1 Ch. audio in/1 Ch. out, RCA

User Interface : Web, Local, GUI

Video Output : 1 × VGA, 1 × HDMI (simultaneous)

Resolution : 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

AI by Camera : Perimeter protection; SMD Plus

Video Compression : H.265/Smart H.264+/H264

Encode Strategy: Instastream

AI by Device : n/a

Video Display Split: 1/4/8/9/16

Audio Compression : PCM; G.711A; G.711U; G.726

Decoding Capability: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps

Camera Blank : Supports

Motion Detection : MD Zones: 396 (22 × 18)

Video Loss : Supports

Alarm Linkage : Recording; snapshot; buzzer; log; preset; email; tour

AI Search : n/a

General Alarm : Motion detection; privacy masking; video loss; PIR alarm

Hard Disk : 1 SATA III ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature

Recording Mode : Manual record; alarm record; motion detection record; schedule record

Backup Mode : USB device

Playback: 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (video clip/file); partially zom in; audio on/of

Record Interval: n/a

Ethernet : 1 × RJ-45, 10/100Mbps self-adaptive Ethernet port

Interface Ports: 2 USB Ports (1 × front USB2.0; 1 × back USB2.0)

Power Supply : 12V DC, 1.5A

Power Consumption : Total output of NVR is ≤ 10 W (without HDD)

Working Temp : -10°C to 55°C (+14°F to +113°F)

Storage Temperature: n/a

Dimension : 260 mm × 232.7 mm × 47.6 mm (W × L × H)

Operating Altitude : 3000 m

Weight : 0.81 kg

Supports Multi-Brand IP Camera through ONVIF Protocol
Online Device Upgrade
Web Services & CMS Support
