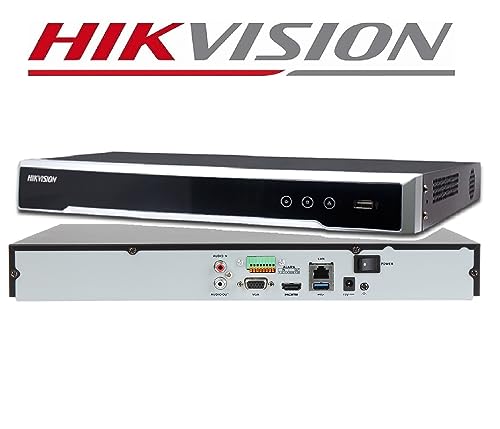

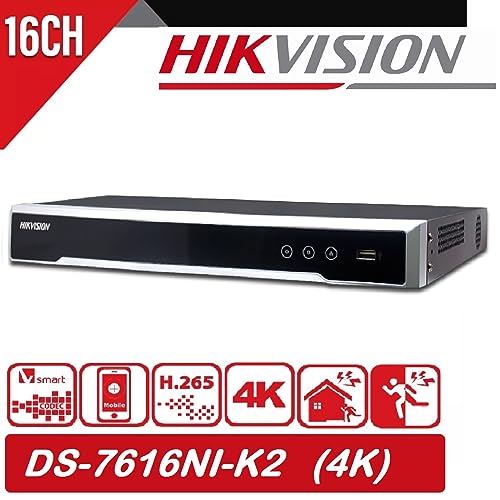

HIKVISION DS-7616NI-K2 16-ch 1U 4K NVR
2 SATA PORTs
(Up to 6 TB, 16 Channel)
Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
16-ch 1U 4K NVR DS-7616NI-K2
Third-party network cameras supported,
Up to 12 Megapixels resolution recording
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
16-channel network cameras can be connected with 160M incoming bandwidth
Up to 2 SATA interfaces
Plug & Play with up to 16 independent PoE network interfaces
Support dual-os to ensure high reliablility of system running Support various VCA detection alarm and VCA search
Support H.265/H.264/MPEG4 video formats
IP Video Input16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
VGA Output 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA independent output
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Decoding H.265/H.265+/H.264/H.264+
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-ch
Decoding Capability 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Remote Connection 128-ch
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
2 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel 1 × USB 2.0
Alarm In/Out 4/
1Power Supply 12 VDC, 3.33A
Consumption ≤ 15 W (without HDD)
Working Temperature -10 °C to 55 °C
Up to 12 MP IP cameras can be connect with this NVR.
H.265+/H.265/H.264+/H.264 Video Formats
2 SATA interfaces for HDD connection (up to 6 TB capacity per HDD)
USEWELL RJ 45 Connectors included
